CARTON OPTICAL SCW SERIES

The SCW SERIES is of the highest quality design and construction with extremely sharp clear optics. High performance at a lower cost. 34 pre-configured stereo microscope models to choose. 2X, 1X/2X, 1X/3X, 2X/4X magnification. 60-104mm working distance depending on model. Build your own configuration with pods, stands, illuminators, eyepieces, digital/video and stages. Strong and Durable.....Ready for Production!

SCW-20P.jpg (14254 bytes)  SCW-P  US$ 396  Binocular Fixed magnification Stereo Microscope. Large sturdy base pole stand is equipped for ease of work. Complete scope with 2x, 1x/2x, 1x/3x or 2x/4x pod, pole stand, focus arm, 10x23 Widefield eyepieces. Illumination available.
SCW-30L.jpg (16769 bytes) SCW-L / SCW-E  US$ 450  Binocular Fixed Magnification Microscope. Transmitted and incident illumination comprised of Tungsten lamps built in. A low voltage lamp 6V 12W is used for  the incident light on the SCW-E to make the whitest light. Complete scope with 2x, 1x/2x, 1x/3x or 2x/4x pod, illuminated column type stand, 10x23 Widefield eyepieces.
SCW-30PF.jpg (12672 bytes) SCW-PF  US$ 477 Binocular Fixed Magnification Microscope. Large sturdy base pole stand is equipped for ease of work. Illumination by fluorescent ring light is built in. Complete scope with 2x, 1x/2x, 1x/3x or 2x/4x pod, pole stand w/ built in illumination, focus arm, 10x23 Widefield eyepieces.

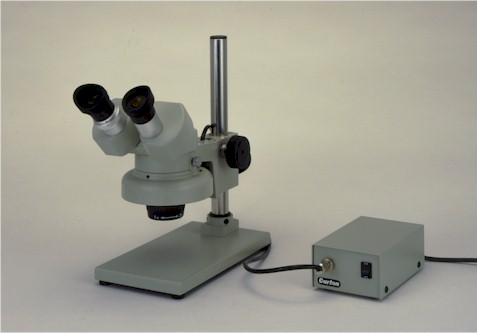

SCW-30SBF-S resize.jpg (21491 bytes) SCW-SBF-S  US$ 486 Binocular Fixed Magnification Microscope. Large narrower base pole stand is equipped for ease of work. Separate power supply. Illumination by fluorescent ring light. Complete scope with 2x, 1x/2x, 1x/3x or 2x/4x pod, 10x23 Widefield eyepieces, pole stand, focus arm,  ring light.
SCW-20T.jpg (12915 bytes) SCW-T  US$ 477   Binocular Fixed Magnification Microscope. Transmitted light is Tungsten, Incident Illumination is by fluorescent ring light built in. Complete scope with  pod, illuminated column type stand, 10x23 Widefield eyepieces.
SCWT-30T resize.jpg (23830 bytes)   SCWT-T  US$ 567  Trinocular Fixed Magnification Microscope. Transmitted light is Tungsten, Incident Illumination is by fluorescent ring light built in. Complete scope with 2x, 1x/2x, 1x/3x or 2x/4x pod, illuminated column type stand, 10x23 Widefield eyepieces.
SCWT-40PF resize.jpg (19389 bytes)   SCWT-PF  US$ 567 fixed Magnification Microscope. Large Stage is equipped for ease of work. Illumination by fluorescent ring light is built in. Complete scope with 2x, 1x/2x, 1x/3x or 2x/4x pod, pole stand w/ built in illumination, focus arm, 10x23 Widefield eyepieces

ACCESSORIES:

  1. All eyepieces are 30mm tube diameter and may be used on other brands of microscopes
  2. All stages may be used on other brands of microscopes. ( We can mount the stage for you.)
  3. All photo adapters (CCD, T-MICRO, ADC-25 etc..) may be used on any 25mm photo tube of other brands of microscopes.
  4. All illuminators may be used with other brands of microscopes.

PART NUMBER

DESCRIPTION

PRICE

EYEPIECES

SW5x 5x WIDE FIELD EYEPIECES $79.00
SW10x 10x WIDE FIELD EYEPIECES $79.00
SW15x 15x WIDE FIELD EYEPIECES $79.00
SW20x 20x WIDE FIELD EYEPIECES $89.00
SW-REG RUBBER EYE GUARDS FOR SW SERIES EYEPIECES $5.99
FSW10x10/100 FOCUSING 10x WIDE FIELD EYEPIECE WITH 10:100mm SCALE RETICLE $79.00
FSW10x5/100 FOCUSING 10x WIDE FIELD EYEPIECE WITH 5:100mm SCALE RETICLE $79.00
FSW10xH5/5 FOCUSING 10x WIDE FIELD EYEPIECE WITH 5x5 1mm SQUARES RETICLE $79.00
FSW10xH10/10 FOCUSING 10x WIDE FIELD EYEPIECE WITH 10x10 1mm SQUARES RETICLE $79.00
FSW10xH10/20 FOCUSING 10x WIDE FIELD EYEPIECE WITH 10x20 0.5mm SQUARES RETICLE $79.00
FSW10xCROSS FOCUSING 10x WIDE FIELD EYEPIECE WITH 10:100mm SCALE & CROSS LINE RETICLE $79.00
FSW10xLINE FOCUSING 10x WIDEFIELD EYEPIECE WITH CROSS LINE RETICLE $79.00

LENSES

NSAL0.5 AUXILIARY OBJECTIVE LENS 0.5x $68.00
NSAL1.6 AUXILIARY OBJECTIVE LENS 1.6x $68.00
54M-4900 AUXILIARY OBJECTIVE LENS 0.5x $73.00
54M-4910 AUXILIARY OBJECTIVE LENS 2.0x $76.00
NSCG-49 COVER GLASS (LENS PROTECTOR) FOR NSZ SERIES MICROSCOPES $19.00

DIGITAL & PHOTO

TVA-45 CCD VIDEO COUPLER WITH BUILT IN .56x RELAY LENS $74.00
ADC-25 DIGITAL CAMERA MOUNT (CLAMPS ON PHOTO TUBE OD) FOR SMALLER DIGITAL CAMERAS $189.00
T-MICRO  T-MOUNT MICROSCOPE CAMERA ADAPTER $39.89
T-PENTAX/S T-MOUNT ADAPTER FOR PENTAX S SERIES CAMERAS $19.99
T-PENTAX-K T-MOUNT ADAPTER FOR PENTAX K SERIES CAMERAS $19.99
T-NIKON/F T-MOUNT ADAPTER FOR NIKON F SERIES CAMERAS $19.99
T-MINOLTA/SR T-MOUNT ADAPTER FOR MINOLTA SR SERIES CAMERAS $19.99
T-MINOLTA/A T-MOUNT ADAPTER FOR MINOLTA ALPHA SERIES CAMERAS $19.99
T-CANON/F T-MOUNT ADAPTER FOR FOR CANON F SERIES CAMERAS $19.99
T-CANON/EOS T-MOUNT ADAPTER FOR FOR CANON EOS SERIES CAMERAS $19.99
T-OLYMPUS/OM T-MOUNT ADAPTER FOR OLYMPUS OM SERIES CAMERAS $19.99
T-KONICA T-MOUNT ADAPTER FOR KONICA CAMERAS $19.99
T-FUJICA T-MOUNT ADAPTER FOR FUJICA CAMERAS $19.99
T-CONTAX T-MOUNT ADAPTER FOR CONTAX CAMERAS $19.99
BW10xPHOTO 10x PHOTO EYEPIECE WITH SPACER RING FOR TRINOCULAR MICROSCOPES $39.00

STAGES

M300-C  MEASURING STAGE SIZE 114mm x 114mm WITH  25mm X 25mm TRAVEL AND MOUNTING FOR DIGITAL MICROMETERS $349.00
M300-E GLIDING STAGE SIZE 140mm x 114mm WITH 94mm x 66mm TRAVEL $329.00
M300-R ROTATABLE GLIDING STAGE SIZE 135mm WITH 25mm x 25mm TRAVEL $408.00
XR723 LARGE GLIDING STAGE SIZE 350X250mm     360X418mm TRAVEL $1178.00
XR724 LARGE GLIDING STAGE SIZE 300X210mm     170X170mm TRAVEL $894.00
CON-MAT CONDUCTIVE MAT FOR MICROSCOPE BASES (CUT TO SIZE) $31.66

ILLUMINATORS

FGS6S500-SA MEGA LIGHT 100 FIBER OPTIC ILLUMINATOR WITH SINGLE BRANCH SEMI RIGID LIGHT GUIDE $507.00
LFGB6S500-SA MEGA LIGHT 100 FIBER OPTIC ILLUMINATOR WITH DUAL BRANCH SEMI RIGID LIGHT GUIDE $607.00
FGR8F1000D55RN-SA MEGA LIGHT 100 FIBER OPTIC ILLUMINATOR WITH RING LIGHT  $629.00
HLL301 FOCUSING LENS FOR USE ON MEGA LIGHT 100 LIGHT GUIDES (EACH) $49.99
XR9913 COAXIAL VERTICAL ILLUMINATOR ADAPTER FOR NSZ SERIES MICROSCOPES $246.00
XR9912 COAXIAL VERTICAL ILLUMINATOR ADAPTER FOR SCZ  SERIES MICROSCOPES $246.00
HDR55 WHITE LED RING ILLUMINATOR COMPLETE $557.00
SPARE PARTS
TB20-12020 120V 20W TUNGSTEN BULB $9.00
TB20-612 6V 12W TUNGSTEN BULB $9.00
FCL9EX-N 9W CIRCULAR FLUORESCENT LAMP  $23.99
